Model :    FC-1

Model：FC-1

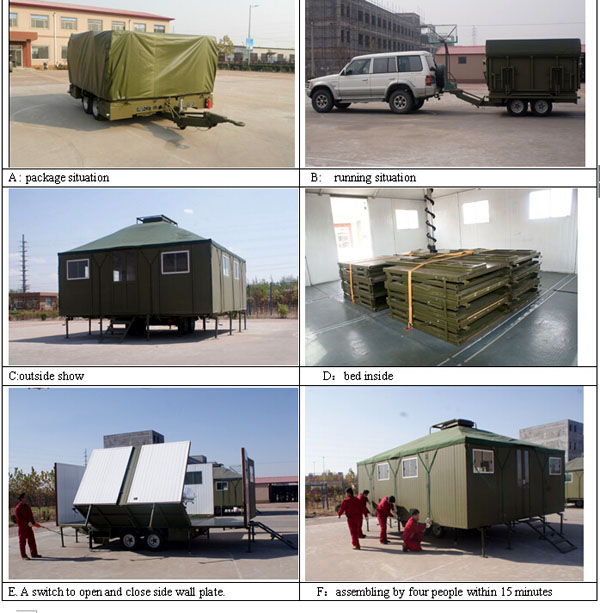

Folding tent trailer

Folding tent trailer was used for the forces, the police, the earthquake saving, the emergency saving and move field work, it can be drawn by different kinds of tractors. It is opened and shut only for ten minutes. Beside you may fix the external power, the battery by oneself, the generating system, sonar power in it.
It can be allowed 12-28 persons living. Optional equipments such as air-conditioning, heater, video, chair and table and so on. It is greatly suitable for the field operation personnel live in security and comfortableness.

Specification:

Structure weight（kg）

3100KG

Traction way

Car dragging

Unfold dimension(mm)

8125*5273*4120

Mission reliability

Tasks in cycles 50 times.
Failures is 3000km.
Inherent validity is 0.92.

Fold dimension (mm)

5450*2250*2520

Usable area(平方米)

29.4 m²

Capacity

12-28 heads

useful life

15 years

Time of unfold(min)

15min/（3-5 people）

translate form

Car, train, ship, plane

The floor height from ground(mm)

700MM

Environmental Adaptability

The min. height of floor (mm)

≥250MM

Usage temperature(℃)

-40-+45

Tread(mm)

1750

Storage temperature（℃）

-50-+70

Departure angle

19°

Relative humidity (RH)

P5% RH25

Fording depth (mm)

350

Working conditions

All day

voltage (V)

220（external）

Wind resistance grade

Less 7 grade

Packing size (mm)

5500*2300*2550

40HQ loading

2 sets/40’H

Wall plate

30mm thick polyurethane of keeping warm material, better warm affect than 240mm brick wall, the plate is both stronger and preventing from fire.

Floor

Highly strong wood floor,clean,anti-skidding, it reach green environmental standard.

Tent

Standard tent material for army, fire proofing, keeping warm.

Air condition

Anti-static air condition,4000 watt power, heater.

fire extinguisher?

Matched with two pcs,? keep safety.

Windows and door

Adopt toughened glass, warm and safety .

Unfold and fold

Wall can be operated automatically, using electromagnetism system to control hydraulic cylinder stretch out and draw back, make sure operation well in any situation.

Tool kits

shifting wrench

1 pc

Slotted screwdriver

1pc

8mm? Allen key

1pc

Jack

1 set

27mm socket spanner?

1pc

Cat ladder

2 pc

Phillips screwdriver

1pc

Manual, CD for fix

1 set

Optional

Name

Advantage

FOB price（USD）

5KW
Gasoline generator

This gasoline engine generator keeps the air condition work well in any situation.

+USD

Solar power system

It can provide enough electrical energy without noisy.

+USD

Folding high-low beds

Suitable for only a few people(less than 15persons),big room.

No pay.

Folding wide bed

Suitable for many people (less than 28persons ).

No pay.

FOB
PRICE（USD）

Common chassis USD ?( no generator)/set?
Speicial chasssis for military USD ( no generator)/set
2 sets/ 40’HC
