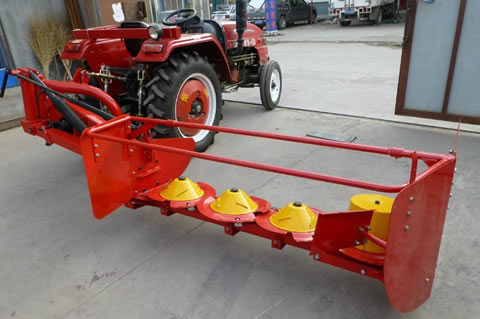

Disc lawn mower
Main feature£º
- It is easy to adjust the height of the disc reaper, cutting cleanly and high efficience,
- It is suitable for cutting on an uneven ground with floating double spring of suspenssion. .
- It is convenient to walk with a folding reaper
- With a safe structure, it may move back when the reaper hit a barriers and avoide being damaged
Specification:
Specification |
DM900 |
DM1700 |
DM2800 |
Oversize(L*W*H) mm |
2040¡Á1047¡Á600 |
3060¡Á1570¡Á1100 |
4000¡Á1570¡Á1100 |
Weight (kg) |
200 |
315 |
350 |
Matched Power (hp) |
18 |
40¡ª50 |
55-65 |
Tractor output PTO |
540 rpm |
540 rpm |
540 rpm |
Working Speed (Km/h) |
10 |
16 |
16 |
Working Width ( m) |
0.9 |
1.7 |
2.5 |
Diam of Cutter (mm) |
435 |
435 |
435 |
Cutter No. |
2 |
4 |
6 |
Cutter Rotary Speed( rap) |
3500 |
2640 |
2640 |
Blade No. |
4 |
8 |
12 |
Blade extend Length( mm) |
40 |
40 |
40 |
|
|
