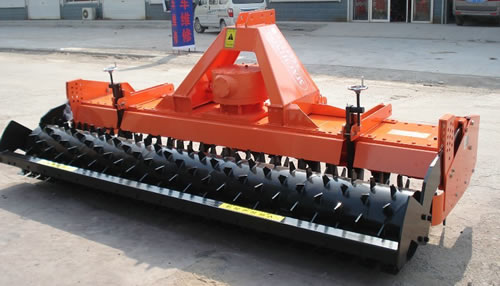

1BX SERIES OF POWER HARROW
Description:
Used area: second farming and seed bed
Working width: 2 m to 4.2 m
Power with: 80 to 250 hp
Main Feature:
1. Crumble soil deeply and finely,
2. used widely to variety of land
3. Straw and stubble chopped well
4. The big roller breake up and level land well.
Speicification:
Model |
1BX-2.0 |
1BX-2.6 |
1BX-3.2 |
1BX-3.7 |
1BX-4.2 |
Working width(m) |
2 |
2.6 |
3.2 |
3.7 |
4.2 |
Rotor number |
7 |
9 |
11 |
13 |
15 |
Left blade |
7 |
9 |
11 |
13 |
15 |
Right blade |
7 |
9 |
11 |
13 |
15 |
Dimension(mm) |
1520*2220*1200 |
1520*2800*1200 |
1520*3300*1200 |
1520*380*1220 |
1520*4300*1220 |
Adjustable depth(mm) |
30-180 |
Total width (mm) |
2300 |
2800 |
3300 |
3800 |
4300 |
Weight (kg) |
1100 |
1250 |
1300 |
1700 |
1900 |
Min.Ground Clearance(mm) |
¡Ý300 |
Matched power (hp) |
80-110 |
90-125 |
110-160 |
140-210 |
160-250 |
FOB Qingdao USD |
5100 |
5500 |
6200 |
7700 |
8250 |
Driven shaft: pay more USD85 .00 with clutch
|
